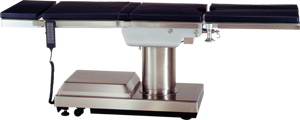

MULTI PURPOSE FULLY ELECTRIC
HYDRAULIC CONTROLLED
OPERATING TABLE
MODEL OT-6700 SERIES

FEATURES
OT-6700 series operating table comes in three
configuration model
OT-6700G [STANDARD TYPE]
OT-6700N [FOR NEURO SURGERY]
OT-6700P [FOR PROCTOLOGY SURGERY]
All Stainless Steel made, elegant design, vesatile
and stable
Remote Controller comes into two [2] different types
for different functions.
The Standard Type which is the most common
standard type remote controller that has the standard
feature function of OT-6700 operating table
The R Type which is the intellectual type.
Functions of the R Type Remote Controller are
as follows
Automatic Brake System
Safety and Protection Function which is operating
table cannot be operated when brakes are not applied
Single Key to Return Level
Complex Action Logic Collation
\/ Type & Inverse /\ Type complex position
Power Saving Mode
The Operating Table can be also equip with an
OPTIONAL UPS Stand By Battery Back-up
System which is built-in type and remote controller can
be added a B type Function Feature which adds
the standby battery function
Features of the B Type Function are
System enables the device to transfer electric source
that inputted into the table to that has a less feeling to
human - 24V DC type, Low Voltage control system
Automatic Switch of Power Supply Function
which UPS Standby Battery Power Pack Power Supply
automatically switches on during Power Failure events which can provide 80 times of operation functions and
automatically turns off when power source returns
The Wire of the Remote Controller can be taken
off during operation proceedure to prevent accidents in
the surgery room









STANDARD / B TYPE


R / RB TYPE
On the remote controller also shows the power
source which the operating table is using
whether on AC or DC power mode
B Type Function on the remote controller also has the
CAUTION SIGN signal when UPS Back-up Battery
System is in near empty situation.
Intellectual Charging System offers automatic
charging feature which automatically charge the UPS
Battery Back-up Power Supply when AC power is in use
and stop charging when battery is in full charge
Either in Battery Mode or in AC mode the
OT-6700 operating table still can be use even without
the batter back-up system

TECHNICAL SPECIFICATIONS

MODEL

OT6700G

OT6700N

OT6700P

TABLE TOP DIMENSIONS

50 x 193cm

TABLE TOP ELEVATION RANGE

65 ~ 95cm

54 ~ 102cm

70 ~ 150cm

BACK SECTION ANGLE

-40° ~ +90°

LATERAL TILT ANGLE

+22° ~ -22°

TRENDELENBURG / REVERSE TREND.

+22° ~ -22°

TABLE TOP ROTATION ANGLE

180°

HEAD SECTION ANGLE

+30° ~ -90°

LEG SECTION ANGLE

+15° ~ -90°

POWER

AC220V 50Hz. / 60Hz.

POWER CONSUMPTION

500VA / 350VA

REMOTE CONTROL VOLTAGE

DC24V / DC5V

REMARKS
Specifications can be manufactured by order.
All models are with motorized brakes.
Elevation, Back Seat, Lateral Tilt and Trendelenbury / Reverse Trend are all electric hydraulic
controlled.
Table Top Rotation, Head Section and Leg Section are all manual control.
Standard Type and R Type load: 500VA, Controller Voltage DC24V.
For OT6700N & OT6700P models, the sliding function is 30cm optional available.
If the device is equipped with the sliding function, the elevation must by added by a 7cm and the
back section range is at 90° ~ -30°.
STANDARD ACCESSORIES
SCREEN FRAME
HEAD SECTION
ARM BOARD
FOOT SECTION
MATTRESS
REMOTE CONTROLLER

REMARKS
FOR OTHER OPTIONAL ACCESSORIES
NEEDED, PLEASE CHECK WITH US		 OPTIONAL FUNCTIONS
B :UPS EMERGENCY BATTERY BACK-UP SYSTEM
R: AUTO LEVEL
S: SLIDING FUNCTION
