D&E International Corporation

MODEL OLH11-003

MODEL OLH11-004

MODEL OLH11-005

MODEL OLH11-006

MODEL OLH11-007

MODEL OLH11-008

MODEL OLH11-010

MODEL OLH11-012

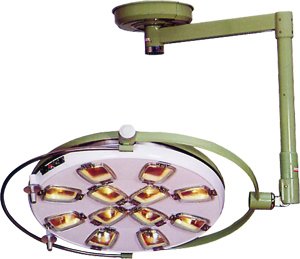

SINGLE LAMPHEAD CEILING MOUNTED
OPERATING LIGHT
MODEL OLH11 - series

FEATURES
Suitable for small clinics, examination rooms, minor surgeries and veterinary clinics.
High Lux Light Intensity makes this operating light ideal for minor surgery and examination proceedures.
Convenient to use and space saving.
Operating Light uses Halogen Bulb of 24V. 50 watts type.
Removeable and Sterilzable Handle.
Different configurations of lamphead to choose from to meet requirements.

TECHNICAL SPECIFICATIONS

Model OLH11-	003	004	005	006	007	008	009	010	012
Number of Bulb	3 Bulbs	4 Bulbs	5 Bulbs	6 Bulbs	7 Bulbs	8 Bulbs	9 Bulbs	10 Bulbs	12 Bulbs
Type of Bulb	24v. 50 watts
Light Intensity Lux	55000	70000	90000	110000	125000	145000	155000	160000	180000
Color Temp.	4200° ± 200°K
Power Consumption	150w	200w	250w	300w	350w	400w	550w	500w	600w
Electrical Input	110v, 7A or 220v, 5A
Lamphead Dia.	45cm	63cm	63cm	63cm	75cm	75cm	75cm	91cm	91cm
Reflector Dia.	14cm
Color Rendition Index	90
Illuminated Field Dia.at 1m.	12cm	14cm	15cm	15cm	20cm	20cm	20cm	20cm	20cm
Brightness Adjustment	Continuous 0% ~ 100%
Illuminated Field Depth	30cm	35cm	40cm	40cm	45cm	45cm	50cm	50cm	50cm
Swivel Radius (approx.)	80cm	80cm	90cm	90cm	90cm	100cm	120cm	120cm	120cm
Lamphead Height Adjustment	55cm
Minimum Ceiling Height	250cm
Infrared Absorption	96%
Focus Controller	By Manual , Located on the side of the lamp head
Transformer	220v, 24v
Intensity Controller	By Manual , Located on the lamp head
